Gpixel Adds MIPI-enabled 5 MP and 12 MP NIR Global Shutter Image Sensors To Popular GMAX Family

date:2023-10-18

October 18, 2023, Changchun, China: Gpixel announces the pin-compatible GMAX3405 and GMAX3412 CMOS image sensors - both based on a high-performance 3.4 µm charge domain global shutter pixel to complete its c-mount range of GMAX products. With options for read out via either LVDS or MIPI channels, these new sensors are optimized for easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.

GMAX3405 provides a 2448(H) x 2048(V), 5 MP resolution in a 2/3” optical format. In 10-bit mode, reading out through all 12 pairs of LVDS channels, the frame rate is over 164 fps. In 12-bit mode, 100 fps can be achieved. Using the 4 MIPI D-PHY channels, the maximum frame rate is 73 fps with a 12-bit depth. GMAX3412 provides a 4096(H) x 3072(V), 12 MP resolution in a 1.1” optical format. In 10-bit mode, reading out through all 16 pairs of LVDS channels, the frame rate is over 128 fps. In 12-bit mode, 60 fps can be achieved. Using the 4 MIPI D-PHY channels, the maximum frame rate is 30 fps with a 12-bit depth. In both sensors, various multiplexing options are available for both LVDS and MIPI readout to reduce the number of lanes.

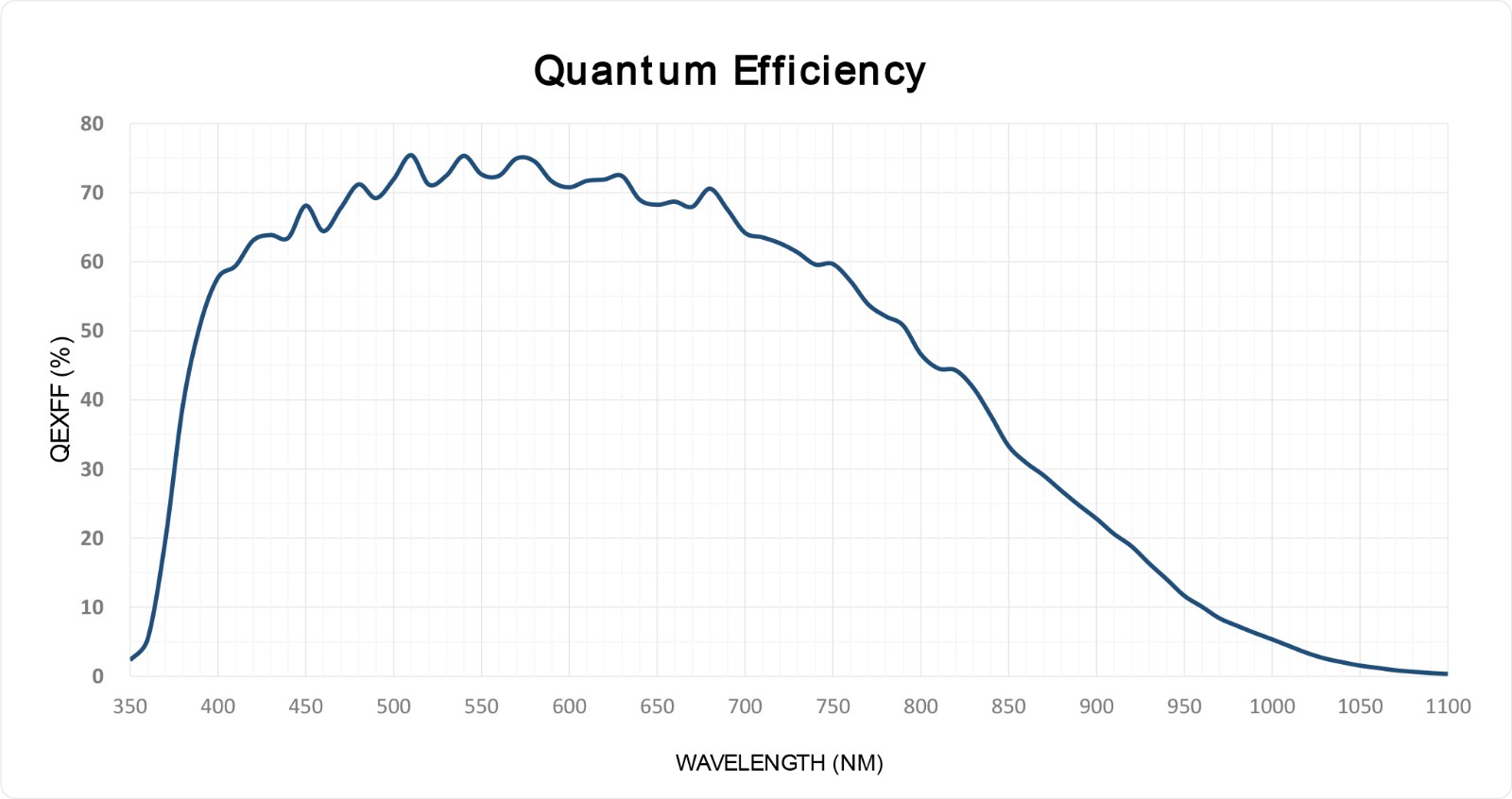

The 3.4 µm charge-domain global shutter pixel achieves a full well capacity of 10 ke- and noise of 3.6 e- at default x1 PGA gain, down to 1.5 e- at max gain setting (x16), delivering up to 68.8 dB linear dynamic range. The advanced pixel design and Red Fox technology combined brings a peak QE of 75% @ 540 nm, a NIR QE of 33% @850 nm , a Parasitic Light Sensitivity of -88 dB and an excellent angular response of > 15° @ 80% response. All of this combined with multislope HDR mode and ultra-short exposure time modes down to 1 us.



“The GMAX family was originally known for the world’s first 2.5 µm global shutter pixel. As the product family grows, we are leveraging the advanced technology that makes the 2.5 µm pixel possible to bring more generous light sensitivity with larger pixel sizes fitting mainstream optical formats. With the addition of the MIPI interface and pin-compatibility and excellent NIR response, these 2 new models bring more flexibility and cost-effectiveness to the GMAX product family.” says Wim Wuyts, Gpixel’s Chief Commercial Officer.

Both GMAX3405 and GMAX3412 are housed in 176 pin ceramic LGA packages, both being pin-compatible to each other. The outer dimensions of the 5MP and 12MP sensors respectively are 17.60 mm x 15.80 mm and 22.93 mm x 19.39 mm. The LGA pad pattern is optimized for reliable solder connections and the sensor assembly includes a double-sided AR coated cover glass lid.

Engineering samples of both products, in both color and monochrome variants, can be ordered today for delivery in November 2023. For more information about Gpixel’s roadmap of products for industrial imaging, please contact info@gpixel.com to arrange for an overview.

About the GMAX sensor family
The GMAX series is Gpixel’s ever-growing global shutter product family, currently featuring 13 unique products with resolutions ranging from 2.4MP to 152MP and pixel sizes from 2.5 um to 4.6 um. For a complete listing of GMAX products, please visit www.gpixel.com.


About Gpixel

Gpixel is an international company providing high-end customized and off-the-shelf CMOS image sensor solutions for industrial, medical, scientific, and professional imaging applications. Gpixel’s standard products include the GMAX and GSPRINT high speed, global shutter series, the GSENSE high-end scientific CMOS series, the GLUX family of starlight imaging surveillance sensors, the GL series of line scan imagers, the GLT series of TDI imagers, GTOF series of iTOF imagers, and the GCINE series of sensors for professional video. Gpixel provides a broad portfolio of products utilizing the latest technologies to meet the ever-growing demands of the professional imaging market.
